The provided date indicates when the tools were released.

First specify the sequences you want to scan for binding peptides. The sequences should either be entered directly into the text area field labeled "Enter protein sequence(s), or can be taken from a file that has to be uploaded using the button labeled "Browse". Please enter no more then 200 FASTA sequences or upload file size less than or equal to 10 MB per query.
The sequences can be supplied in three different formats:

• Space separated sequences
• One continuous sequence
• FASTA format

The format of the sequences can be specified explicitly using the list box labeled "Choose sequence format". If that list box is set to "auto detect format", the input will be interpreted as FASTA if an opening ">" character is found, or as a continuous sequence otherwise.
All sequences have to be amino acids specified in single letter code (ACDEFGHIKLMNPQRSTVWY)

The prediction method list box allows choosing from a number of MHC class I binding prediction methods: Artificial neural network (ANN), Stabilized matrix method (SMM), SMM with a Peptide:MHC Binding Energy Covariance matrix (SMMPMBEC), Scoring Matrices derived from Combinatorial Peptide Libraries (Comblib_Sidney2008), Consensus, NetMHCpan, NetMHCcons, PickPocket and NetMHCstabpan.

Predictions are not limited to peptides of one specific length binding to one specific allele, but multiple allele/length pairs can be submitted at a time. The allele / peptide length combination can be selected using the list boxes in this section. For some allele / peptide length combinations, no prediction tools exist because there is too little experimental data available to generate them. For instance, selecting an MHC source species of human will allow you to select a distinct set of MHC alleles and Peptide lengths related to the human MHC source species. Alternately, selecting a MHC source species of mouse will allow you to select a different set of MHC alleles and Peptide lengths related to the mouse MHC source species.

Selections in the listboxes in this section influence the values available in others. For example, selecting "mouse" as the MHC source species will limit the selections available in the MHC allele listbox. Similarly, the allele chosen will limit the available peptide lengths.

By default "Show only frequently occurring alleles" check-box is checked. This allows the selection of only those alleles that occur in at least 1% of the human population or allele frequency of 1% or higher. However, un-checking the check-box will allow selection of all the alleles and corresponding peptide lengths for a particular species.

File should be in simple text format containing comma separated values, where each allele is separated from it's length by a comma followed by a new line. Therefore, you can upload a file with each line containing only one such allele-length pair(example given below). However, you may also choose allele(s) and their length(s) from the drop-down selection in together with your uploaded file.
Example: Additional information regarding HLA allele frequencies and nomenclature are also provided.

Note: for NetMHCpan method, there is an option to paste a single full length MHC protein sequence in FASTA format, instead of selecting alleles from the dropdown list.

When the IEDB recommended option is selected, this box can be checked to select a reference panel of 27 alleles, as described here.

The menus in this section change how the prediction output is displayed.

To limit the number of results displayed, which can significantly speed up the time it takes to make a prediction, it is possible to define an upper boundary for the prediction in the "cutoff" field. Note that the listbox preceding the "cutoff" field has to be set to "Predicted IC50 [nM] " for the cutoff to take effect.

To reuse the prediction results in an external program, it is possible to retrieve the predictions in a plain text format. To do this, choose "Text file" in the output format listbox.

We have conducted a large scale evaluation of the performance of the MHC class I binding predictions and found that they in general rank as 1) ANN and 2) SMM method. Supplementary information, including all datasets used to establish and evaluate the methods, is available here.

By default, the overall best method (ANN) is selected. However, not all methods can currently make predictions for all allele and peptide length combinations, so only the methods available will be displayed.

As of April 2013, the tools have been trained on the new set of peptide binding data that became recently available. Thus, predictions made using the new tools may be different from those of the old tools.

Inputting your email address is recommended to ensure you could receive the result, especially for those prediction jobs which will take a long time. A email with the result table attached will send to you mail box as well as the result displayed on the web site.
One or multiple email addresses with comma separated could be accepted.
Example: Please input your email address for the extremely large predictions because for these jobs we only send the result to users by email. Or download the standalone to finish these predictions locally.
For additional information regarding how to input your email address in the mhci API, Please look at the help page here.

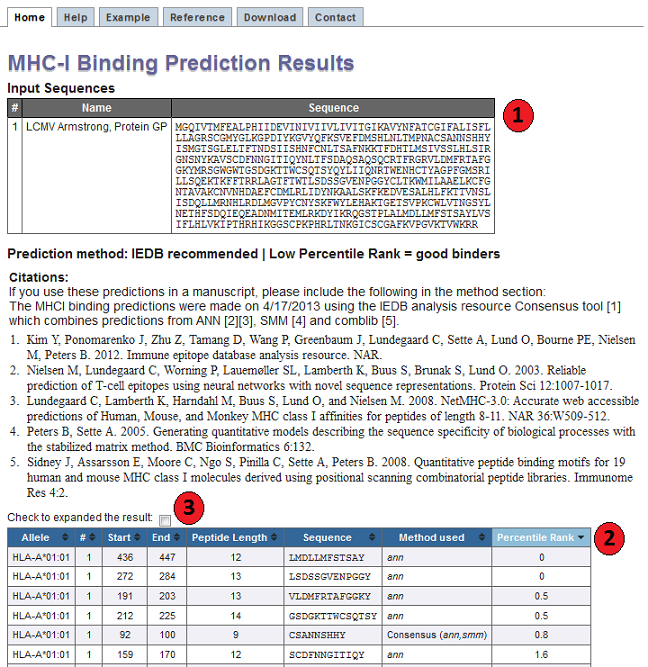

This one is easy. Click the submit button, and a result screen similar to the one below should appear.

This table displays the sequences and their names extracted from the user input. If no names were assigned by the user (which is only possible in FASTA format), the sequences are numbered in their input order (sequence 1, sequence 2, ...).

Each row in this table corresponds to one peptide binding prediction. The columns contain the allele the prediction was made for, the input sequence number (#), start position and end position of the peptide, its length, the peptide sequence, ('method used' if IEDB recommended method is used and 'percentile rank' for both IEDB recommended and consensus), the predicted affinity and precentile rank for ann, smm and comblib_sidney2008. The table can be sorted by clicking on the table column headers.

The predicted output is given in units of IC₅₀nM. Therefore a lower number indicates higher affinity. As a rough guideline, peptides with IC₅₀ values <50 nM are considered high affinity, <500 nM intermediate affinity and <5000 nM low affinity. Most known epitopes have high or intermediate affinity. Some epitopes have low affinity, but no known T-cell epitope has an IC₅₀ value greater than 5000.

While the output of the predictions is quantitative, there are systematic deviations from experimental IC₅₀ values. For example, the makeup of the training data and the prediction methods used have a non-trivial impact on the range of predicted IC₅₀ values. A detailed evaluation of the correlation between predicted IC50 and antigenicity of peptides is currently being conducted which will help to better interpret prediction results.

In addition to the IC50 values for each peptide, a percentile rank is generated by comparing the peptide's IC50 against those of a set of random peptides from SWISSPROT database. A small numbered percentile rank indicates high affinity. For the 'consensus' and 'IEDB recommended' methods, the median percentile rank of the methods used is reported as the representative percentile rank.

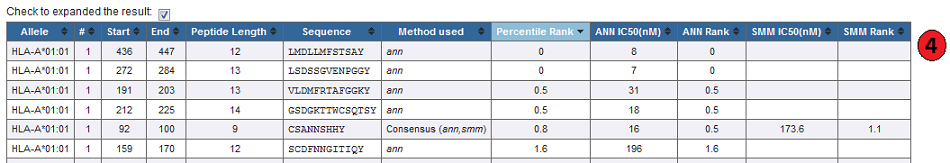

By default prediction result is collapsed to show only the percentile rank when either 'IEDB recommended' or 'consensus' method is used. The table can be expended to display the individual score of different methods used by checking box above result table.

Methods other than the IEDB recommended and Consensus, display just their IC50 scores.
